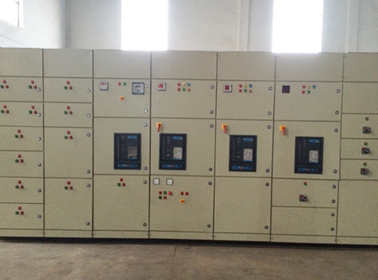

Power Control Centre
Power Control Centre is used for distribution and control of various power source used in industry. Normally Power Control Centers is installed near power source hence fault level is high. It is designed to suit fault level of 50KA or 65 KA for 1 sec. Busbar system in Power Control Centers are designed to suit the fault level as well as temperature rise to 40°c above ambient. Ample space is provided for cable termination. Various protections viz short circuit, overload, earth fault, under voltage etc are provided to protect source and equipment. We are engaged in manufacturing of power control centers from the best raw materials. We meet the requirements of International Standards along with compliance to local standards and regulations. The complete structure shall be rigid, self-supporting & free from twists and bends. The panels will be totally dust and vermin proof. They will have fixed or draw out type. Bus Bars are supported by SMC /DMC bases will be employed throughout the length of the panel. Internal wiring be carried out with 11000/650 volt grade PVC insulated stranded conductor wire. All joints will be solidly crimped using copper thimbles . Earthing Bus Bars will be running all along the board.
- Key Features
- Safety
- Compact design reduces the dimensions of substation
- Double deck bus bar arrangement saves energy and reduces watt loss
- Available in conventional and intelligent MCC design
- Optimised for both Aluminium and Copper bus bars
- Form 4, type 7 design available to ensure operator safety at all times
- Arc resistant design In auxillary bus bar zone
- All operations - test or service can be performed behind closed doors
- Enhanced IP protection even on removal of module to prevent accidental contact with live parts
- Internal arc withstand design also available to minimize the damage during internal arc fault
- Easy operation & Maintenance
- Large cabling area for easy installation -choice of 300mm and 400mm wide cable alley
- Flexible structure - bus bar entry and module reconfiguration can be done at site
- All doors are hinged type for ease of removal during maintenance
